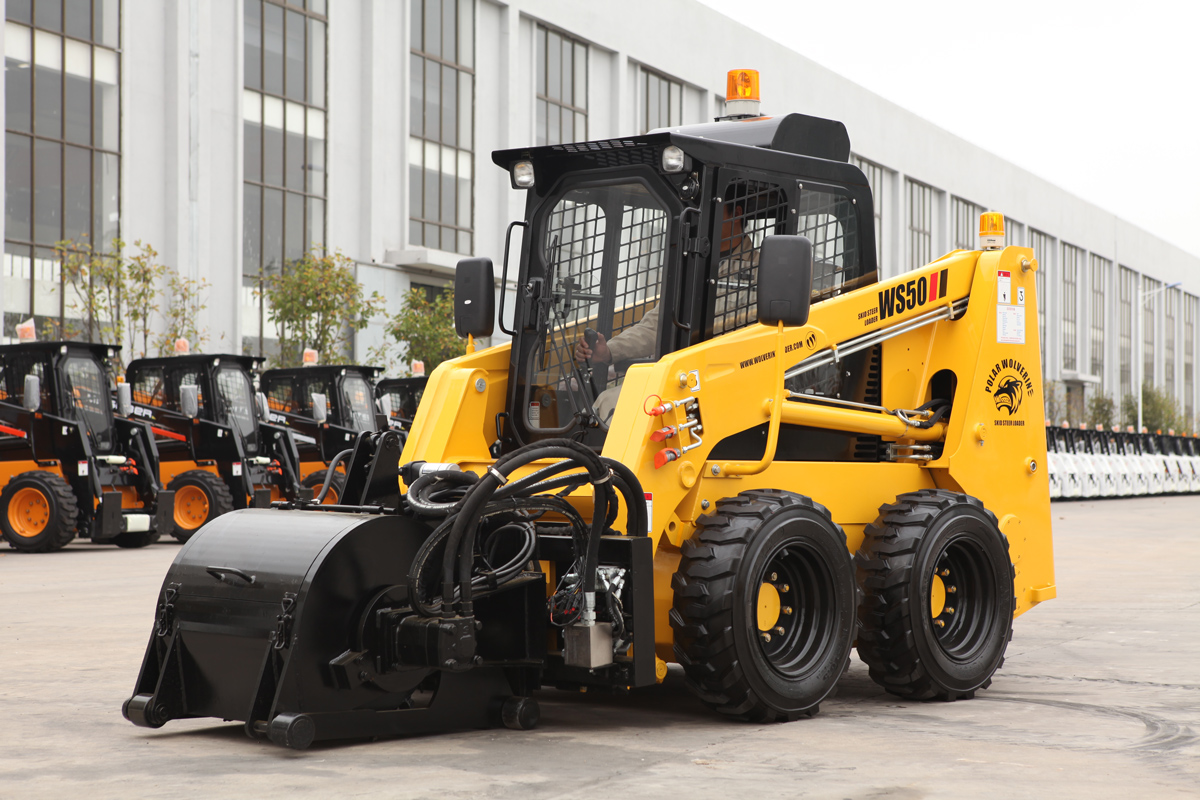

Polar Wolverine skid steer loader at the scene
Ti-Han Heavy Industry, focusing on small construction machinery for more than 20 years, excellent product performance and quality service, by domestic and foreign users, agents widely praised. At the same time, Ti-Han will reward our partners who have been supporting us with more excellent products and better services. Ti-Han heavy Industry welcomes new and old friends and industry friends from all over the world to visit and seek win-win cooperation with Ti-Han..
| Parameter |
| WS50 | WS60 | WS65 | WS75 | WS85 | WS100 | |
| Rated load | kg | 750 | 800 | 900 | 950 | 1050 | 1250 | |
| Tipping load | kg | 1500 | 1600 | 1800 | 1900 | 2100 | 2500 | |
| Operating weight | kg | 3000 | 3000 | 3300 | 3300 | 3500 | 3800 | |
| Bucket capacity | m³ | 0.41 | 0.41 | 0.41 | 0.56 | 0.56 | 0.56 | |
| Power system
| brand |
| xinchai | xinchai | mitsubishi | mitsubishi | mitsubishi | kuboot |
|
|
| perkins | weichai | weichai | ||||
| The output power | HP/kw | 36.8 | 45 | 47 | 55 | 62 | 67.7 | |
| 35.7 | 45 | 74.9 | ||||||
| speed | rpm | 2650 | 2500 | 2500 | 2500 | 2500 | 2400 | |
| Cooling way |
| water | water | water | water | water | water | |
| Diesel tank capacity | L | 88 | 88 | 88 | 88 | 100 | 100 | |
| The performance parameters
| Mode of operation |
| mechanical | mechanical | mechanical | mechanical | mechanical | mechanical |
|
| Hydraulic control | Hydraulic control | Hydraulic control | Hydraulic control | Hydraulic control | Hydraulic control | ||
| Lifting way |
| The radial | The radial | The radial | The radial | The radial | The radial | |
| Tyre standards |
| 10-16.5 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | |
| Maximum speed | km | 12 | 12 | 12 | 13 | 13 | 13/20 | |
| The hydraulic parameters | Work flow | L/min | 66 | 66 | 75 | 82/132 | 82/132 | 82/140 |
| Pressure of work | bar | 210 | 210 | 230 | 230 | 230 | 230 | |
| Hydraulic tank capacity | L | 70 | 70 | 70 | 70 | 70 | 70 | |
| A | Maximum operating height | mm | 4058 | 4058 | 4270 | 4270 | 4295 | 4295 |
| B | Height of bucket hinge pin | mm | 3077 | 3077 | 3269 | 3269 | 3290 | 3290 |
| C | top height without A/C | mm | 2007 | 2007 | 2023 | 2023 | 2023 | 2023 |
| C | Top height with A/C | mm | 2177 | 2177 | 2200 | 2200 | 2023 | 2023 |
| D | Max horizontal height of bucket bottom
| mm | 2908 | 2908 | 3090 | 3090 | 3116 | 3116 |
| E | No bucket length
| mm | 2700 | 2700 | 2710 | 2710 | 2889 | 2889 |
| F | Length with bucket | mm | 3413 | 3413 | 3433 | 3433 | 3688 | 3688 |
| H | Max unloading height | mm | 2303 | 2303 | 2551 | 2551 | 2543 | 2543 |
| J | Uninstall the distance | mm | 675 | 675 | 603 | 603 | 652 | 652 |
| M | The wheelbase | mm | 999 | 999 | 1050 | 1050 | 1200 | 1200 |
| Q | Angle of departure | ° | 23° | 23° | 22° | 22° | 24° | 24° |
| P | Clearance from the ground | mm | 185 | 185 | 202 | 202 | 202 | 202 |
| W | Tyre edge width | mm | 1740 | 1740 | 1817 | 1817 | 1817 | 1817 |
| X | Edge width of bucket | mm | 1800 | 1800 | 1880 | 1880 | 1880 | 1880 |
| L | Maximum bucket Angle | ° | 99° | 99° | 99° | 99° | 99° | 99° |
| G | Unloading Angle (maximum height) | ° | 38° | 38° | 38° | 38° | 38° | 38° |
The powerful power of the skid steer loader
Perfect hydraulic system and durable structural parts
The maintenance of Ti-Han skid steer loader is very convenient.
As long as you open the rear tail cover and upper cover, raise the big arm and lift the cab, you can complete all the inspection and filling work including the engine, and maintain the filter and battery. The tail cover, the big arm and the cab are equipped with safety support, and completely solve the hidden danger of safety. Unlike other brand slippage loaders, the Ti-Han Slippage is an efficient use of maintenance time, rather than wasting time opening and approaching maintenance and maintenance points.
Whether you’re working on a construction site, park, farm, or another type of job site, a skid steer may be just the piece of equipment you need. This versatile machine features easy maneuverability, compact design, and easy operation. However, fundamental differences exist among various skid steers available for rent. Consider what you need from your skid-steer loader to find the best one for your needs.
Think About Your Job Surface
Certain compact wheel loaders will work better than others on different types of terrain. Compact wheel loaders with wheels work best on flat, hard surfaces. They can’t handle rocky ground, soft mud, and other challenging terrains. However, compact track loaders are designed to operate on these surfaces.
The tracks glide over the top of challenging surfaces, rather than sinking down as wheels do, so they’re perfect for crossing snow, sand, and other hazards. A wet surface also won’t trouble a track loader, which makes these machines capable of maximizing work time in areas prone to thunderstorms. When your skid steer has wheels, you would need to wait for your site to dry out after rain to work safely.
Tracks may be more versatile, but they’re not always the best choice. These rubber track components wear more quickly than wheels on hard surfaces such as concrete and asphalt. Tracks are also more expensive to replace. This factor is but one item that makes compact track loaders more expensive to maintain than wheeled units. You may think this feature doesn’t matter to you if you’re renting, but rental companies consider these costs and price their compact track loaders accordingly. You won’t want to pay more for a compact track loader if you’re using the equipment on hard, flat ground.
Consider the surface of your job site carefully prior to choosing a skid steer loader for your work.
Assess the Lift
Skid steer lifts have either vertical or radial lifts. Different types of lifts have different capabilities and limitations.
A skid steer with a vertical lift makes accessing high, out-of-the-way spaces easy. This type of skid steer also has more reach at the midpoint of its lift cycle than radial lifts. As such, this type of skid steer is ideal for lifting pallets from a truck and moving them to another location. If most of your work is at eye level or above, a skid steer with a vertical lift is the optimum machine.
If you’re working closer to the ground, digging holes for a property’s foundations or landscaping a park, a skid steer with a radial lift can suit your purposes better. Radial lifts have a simple, compact design that weighs less than most vertical lifts.
Ti-han’s product manager for skid steers, notes that both skid steers with vertical and radial lift designs can tackle most jobs. If you need your skid steer for a variety of applications, deciding what type of lift to select likely doesn’t matter much. However, if you have only one type of job in mind, renting a skid steer with a lift that excels at that type of task can be smarter.
Many skid steer attachments are used on various machines, but there are no universal skid steer attachments. The reason skid steer attachments aren’t universal rests in one simple fact – not all skid steers have the same design and operating capacity. Mid-sized skid steers can’t operate the same way as compact or full-sized machines. The dimensions of each machine are entirely different, which makes it extremely difficult for every attachment to fit other devices perfectly.
At Ti-han, our skid steer attachments are very durable and accessible, but there is no way to make them universal for every machine. However, our attachments are designed to operate on all the top skid steer brands. If you need help finding a skid steer brand that’s compatible with your attachments, we can discuss the best attachments available for your machine. For more helpful insight about skid steer brands and attachments, review our Frequently Asked Skid Steer Questions, so you can make an informed decision before you buy.
After you decide what skid steer brand is best for your workload and industry needs, it’s time to determine which attachments will work best for your brand if you don’t already have an arsenal of equipment. Even though this might seem complicated, the reality is that most attachment manufacturers design their products to be as diverse, flexible, and hard-working as your machine. At Ti-han, we create our products to be compatible with the top skid steer brands so that you can purchase your next skid steer with total peace of mind.
Our team understands that sometimes customers have to invest in multiple skid steer products because not all job sites are the same. That means you need equipment that’s as versatile as it is powerful. We’ve designed our skid steer attachments to be diverse, efficient, and equipped for anything your workload requires. While it’s a good idea to think about what machine works best with your line of work, it’s just as important to find equipment compatible with your device.
Once you purchase a skid steer, think about your machine’s size, depth, dimensions, operation, and rated operating capacity compared to your attachments. It’s also essential to measure your device, so you can make sure your attachments are the best fit for your new skid steer.
Depending on whether or not you’ve bought a compact or full-sized skid steer, the dimensions of your machine will impact whether or not your attachments are the best fit for your machinery. Compact equipment sizing is much different than full-sized equipment, so it’s a good idea to think about these components before purchase.
A skid steer loader can scoop and dump small amounts of dirt, remove snow, clean streets and parking lots, and move around bales of hay. It’s meant to handle small jobs quickly and efficiently. You know, the stuff you could do by hand, but really don’t want to.
A skid steer loader was originally built with a steerable rear wheel. The compact machine pivoted on its own length. Later, it was redesigned to roll on four fixed wheels. This was accomplished by distributing the loader’s weight unevenly – so that one side was heavier than the other. The wheels on the heavier side of the loader counter rotate. This pivots the loader so that the two wheels on the other side skid in the direction of the turn.
Once you define your job requirements, you can determine the specifications and features that you need. You’ll want to make a distinction in advance between needs and wants. It can be tempting to up your budget when you see some cool features. Bring your requirements document with you and stay focused. The following specs will help you narrow down your list of potential models.
Ultracompact skid steer loaders have a load capacity of around 600 pounds. You’re not going to pick up huge amounts of material with these machines. But they work well for small jobs and ultra-tight spaces. Not to mention small budgets. Of course, much larger skid steer loaders are available. A 100-hp loader can lift about a ton and a half. The key is striking a balance: enough power to meet your requirements (perhaps a bit more), but not oversized.
Different kinds of attachments help to diversify the capabilities of the equipment. For spring, summer, winter, or fall, it can help increase productivity and add a level of efficiency in all kinds of project types.
Skid Steer Attachments for Material Moving
Moving material is the main job of a skid steer. Smooth buckets make it easy to move soil or other materials. It is faster and easier than doing so by hand and adds a level of efficiency to any job.
Skid Steer Attachments for Digging
When hand shoveling would take too long but the job is too small for a compact excavator, then this attachment may work best for you. Sawtooth bucket attachments for skid steers are great for digging in rocky landscapes, hard-packed soil or when digging right into the ground.
Available in many shapes and sizes, grapplers feature retractable claws for gripping and grabbing. Mainly used in construction sites for moving larger objects and debris, farmers can also make use of this attachment for pulling stumps and carrying logs.
Steel rotating augers make plowing through deep-packed snow easy. Skid steers can be used to clear heavy snow when paired with a snowblower attachment and can be great for narrow spaces like sidewalks or between buildings.
A dozer blade attachment can be added to a skid steer to help with landscape grading and pushing heavy loads. If the job is too small for a dozer then the skid steer can fill that gap.
While these are the most popular attachments, the skid steer can also be fitted with concrete breakers, auger drills, tillers and mowers. It would be more difficult to find a job that the skid steer can’t help with than one that it can.
